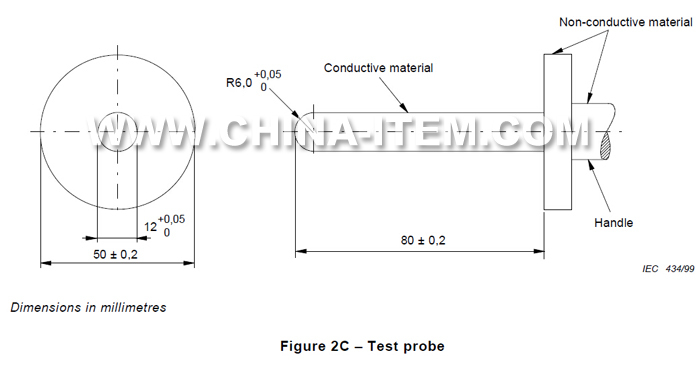

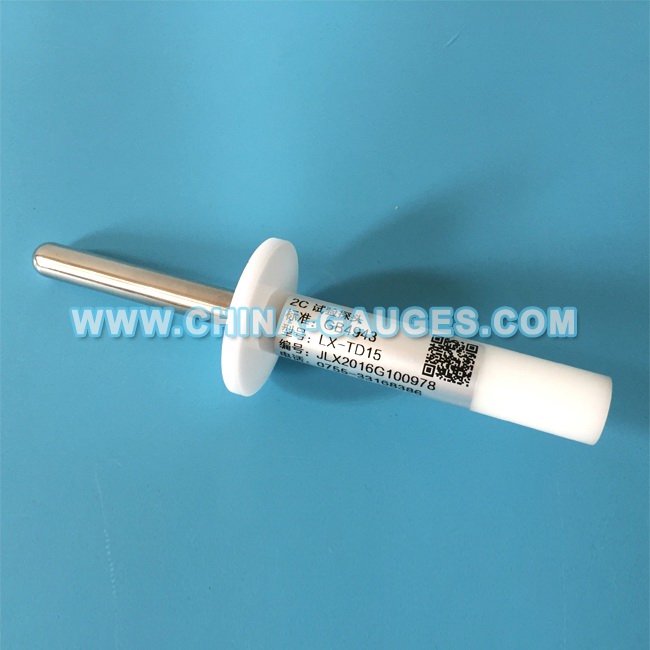

Blunt Probe of IEC 60950 Figure 2C Test Probe







Purpose:

Telecom-Test Probe meets IEC60950 Figure 2C, IEC 62368 Figure V.3 and UL6500 Figure B.1 standards. is for the absolute share TNV circuits information technology to see if they provide sufficient protection.

Contacts of terminals for TNV CIRCUITS which cannot be touched by the test probe figure B.1, are an additional exemption from the requirement for inaccessible TERMINAL contacts.



Apparatus containing input TELECOMMUNICATION NETWORK leads over which ringing voltages are applied to the equipment shall be subjected to Leakage Current due to Ringing Voltage tests per 6.3.4.3 of UL 1950, Third Edition.





Conforms to:

Standard UL6500 Figure B.1 / IEC60950-1 Figure 2C / IEC 62368 Figure V.3 etc.







Technical Parameter:



Test probe diameter: 12mm

Test probe length: 80mm

Baffle plate thickness: 5mm

Baffle plate diameter: 50mm





HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.



Main Products: Go Not Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
