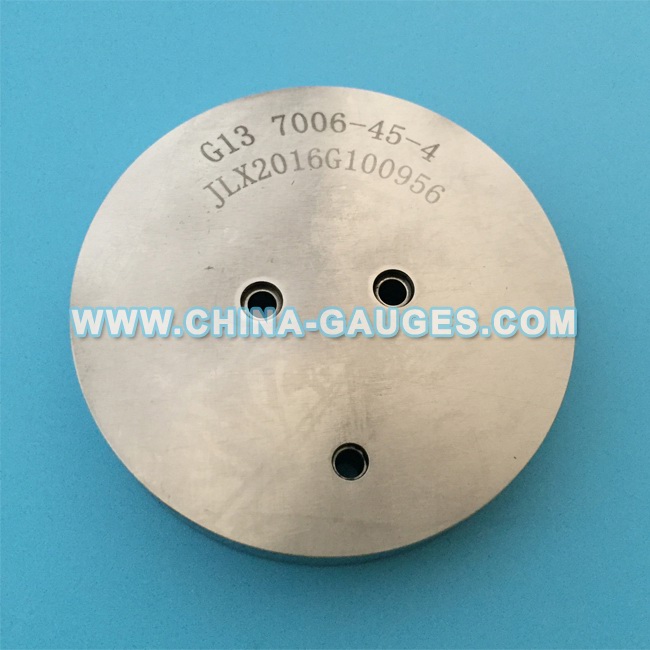

IEC 60061-3 Go Not Go Gauge for G13 Lamp Caps 7006-45-4



Purpose:

To check dimensions E max., F min., F max. and the combined pin diameter and displacement of pins (including bosses) of bi-pin caps G13 on finished lamps.



Testing:

The pins of the caps on finished lamps shall enter the gauge at surface O and, when fully inserted, the surfaces of cap and gauge shall contact.

In this position the ends of the pins shall be co-planar with or project beyond surface X, but shall not project beyond surface Y.

Each individual pin shall enter hole e1 at surface O until the face of the cap and the surface of the gauge contact.

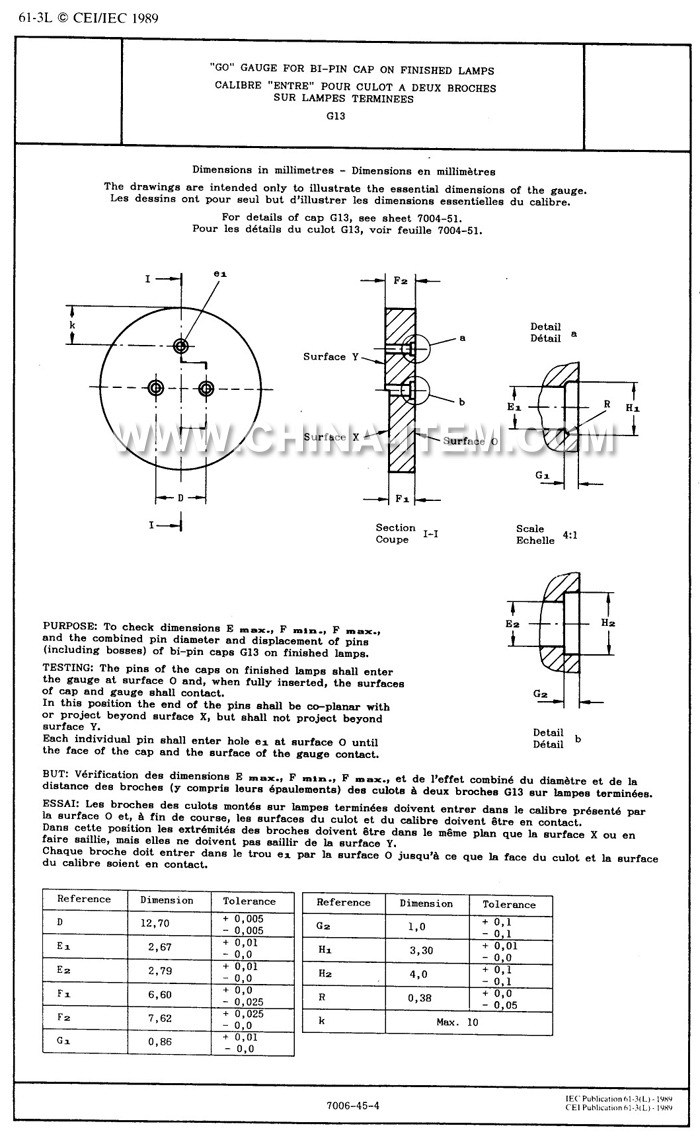

Go Gauge for Bi-Pin Cap on Finished Lamp G13





Co

mpany introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.



Main Products: Go Not Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.


If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
