IP Test Apparatus

Water Jets Nozzle Test Device of IPX5 and IPX6

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Contact Person: Nina She
  • Email: sales@china-gauges.com
  • Skype: nina.she@outlook.com
  • Tel: +86-755-33168386
  • Made in China
  • FEEDBACK



This tester is used for the verification test of the degree of protection to the risk of water penetration provided by the

wrapper of equipment in fulfillment of IPX5 and IPX6 according to the IEC 60529 Section 14.2.5. & 14.2.6.

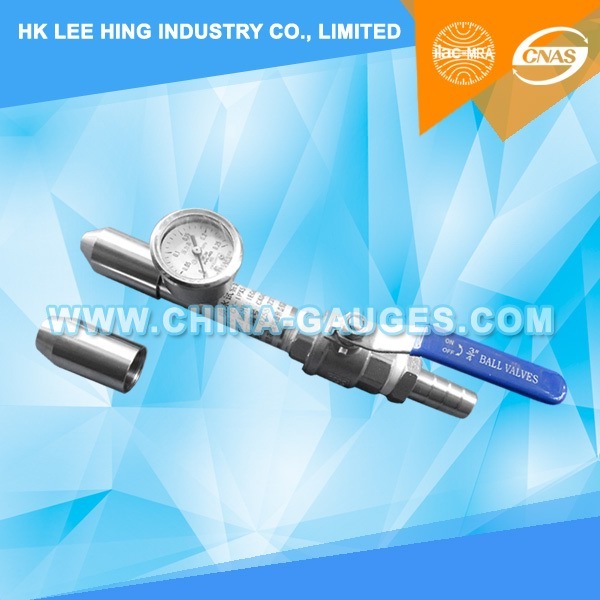

The device consists of a jet handle that is equipped with a pressure gauge flow valve.

The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.



Item IPX5 IPX6
The nozzle diameter 6.3 mm 12.5 mm
Water flow 12.5±0.625L/min. 100±0.625L/min.
Testing time Not less than 1min/m2 (not less than 3 mins)
The distance from jet nozzle to enclosure 2.5~3m
Pressure Gauge 0 - 2.5 bar ( 0 - 0.25 MPa )
Reference standards IEC60529,IEC60598-1,IEC60335-1,IEC60745-1
Nozzle Material Stainless Steel



Figure 6 - Test device to verify protection against water jests (hose nozzle)
