IEC60061-3 7006-24A-1 E39 Gauge for Finished Lamps Fitted wi







IEC60061-3 7006-24A-1 E39 Gauge for Finished Lamps Fitted with Caps for Testing Contact-Making

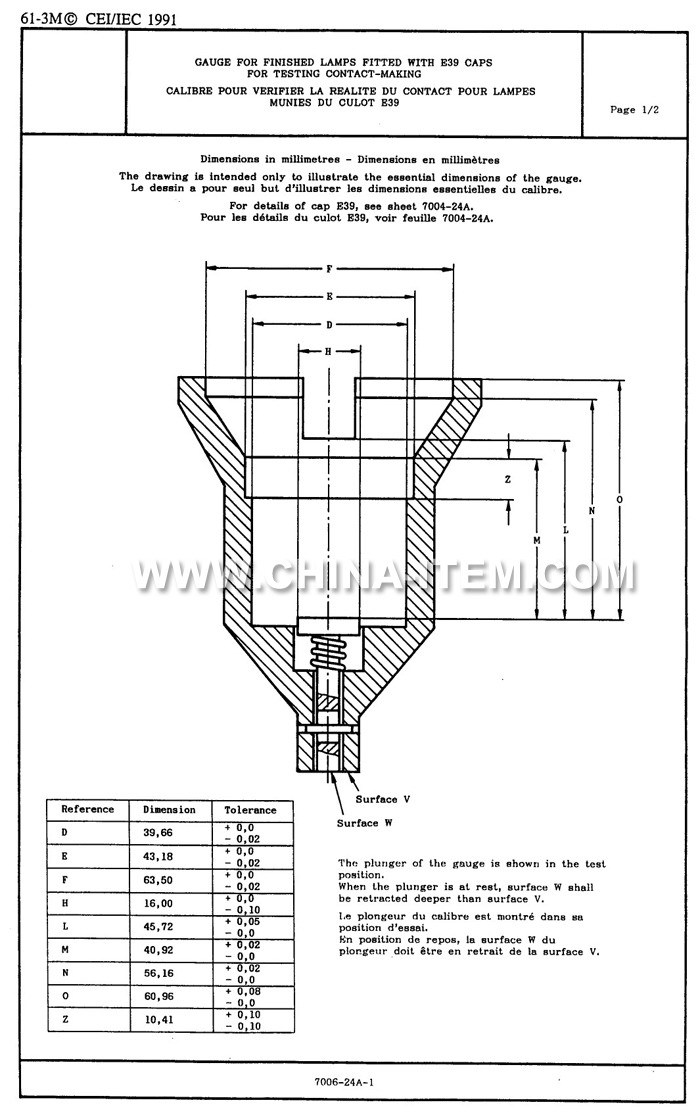

The plunger of the gauge is shown in the test position.



When the plunger is at rest, surface W shall be retracted deeper than surface V.



PURPOSE: To check lamp dimensions, particularly the combination of cap length and bulb shoulder shapes, for contact-making in a lampholder.



TESTING: The shape of the lamp, with regard to the fit in the lampholder, is assumed to be correct, if the lamp can be pushed into the gauge until surface W reaches surface V or projects beyond it.



Note. - Some existing lamp designs employing G-shaped bulbs with short checks may not satisfy this gauge.







HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.



Main Products: Go Not Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
