Lamp Cap Gauges

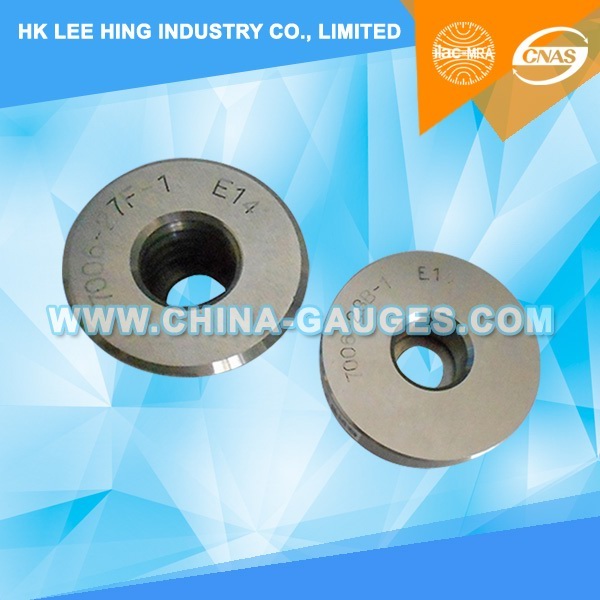

E14 GO and Not Go Gauges of Finished Lamp Caps

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Contact Person: Nina She
  • Email: sales@china-gauges.com
  • Skype: nina.she@outlook.com
  • Tel: +86-755-33168386
  • Made in China
  • FEEDBACK



E14 Go Not Go Gauge of Finished Lamp Caps Include:



1) IEC60061-3 7006-27F-1 E14 Go Gauge for Caps on Finished Lamps;

Purpose:
To check the maximum dimensions of the screw thread and dimension T1 minimum of E14 caps on finished lamps.

Testing:
When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project beyond surface X.







2) IEC60061-3 7006-28B-1 E14 Not Go Gauge for Caps on Finished Lamps;

Purpose:
To check the minimum outside (major) diameter of the screw thread, dimension d, of caps E14 on finished lamps.

Testing:
When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X.
Only the weight of the gauge itself shall be used in the test.
