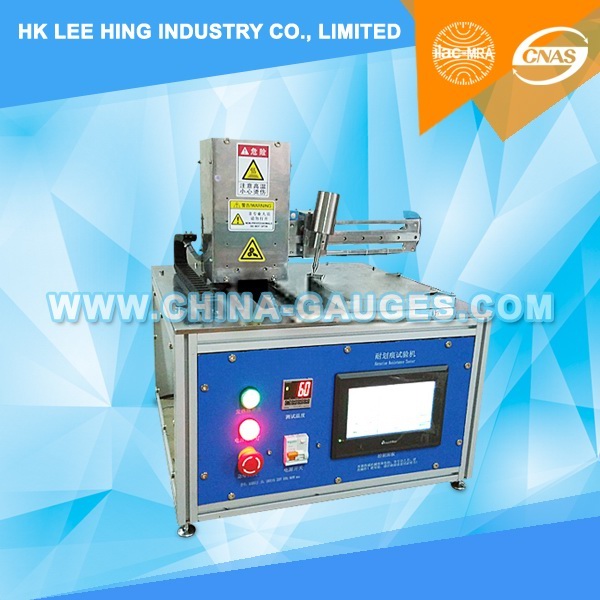

Abrasion Resistance Tester of IEC 60335-1 and IEC 60950







Specification:

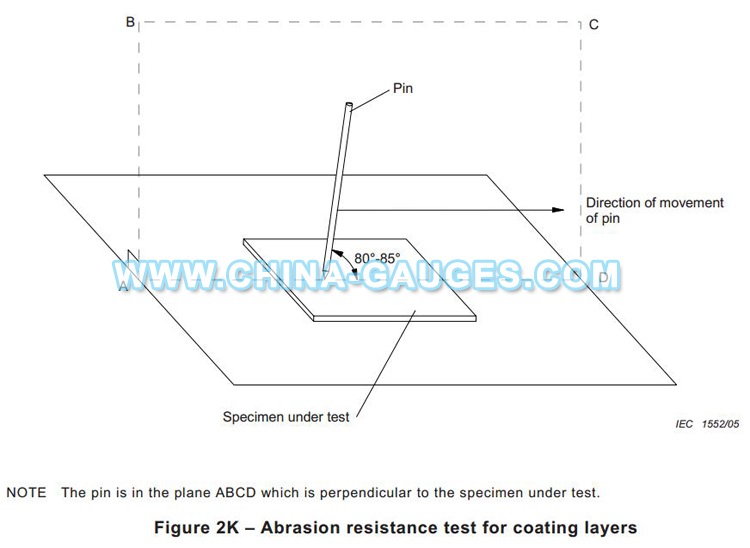

1) According to IEC 60950 figure 2K and clause2.10.8.4, IEC 60335-1 clause 21.2.



2) Abrasion Resistance Tester is used to check abrasion strength of printed circuit boards or the insulating accessible parts of the household appliances.



3) Abrasion resistance tester can touch screen set the X axis arbitrary stroke 0-180mmand the Y shaft arbitrary spacing (0 ~180mm) and Z axis with lifting motor, and the speed of the X axis can be regulated within 0 ~30 mm/s, Y axis speed can be adjusted in the range of 0 ~20mm. At the same time, the testing machine can provide the heating function for the sample, and the temperature display panel is provided, which is convenient to use, simple operation and complete function.





Technical:

Input Voltage

220V / 50Hz

Control System

PLC + Touch Screen

Preheating Tablet Size

150 mm *150 mm

Drive Mode

Three-axis Motion

Pattern

Auto & Manual

Touch Screen Size

7 inch

Temperature Module

PLC









Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.



Main Products: Go Not Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.


If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
